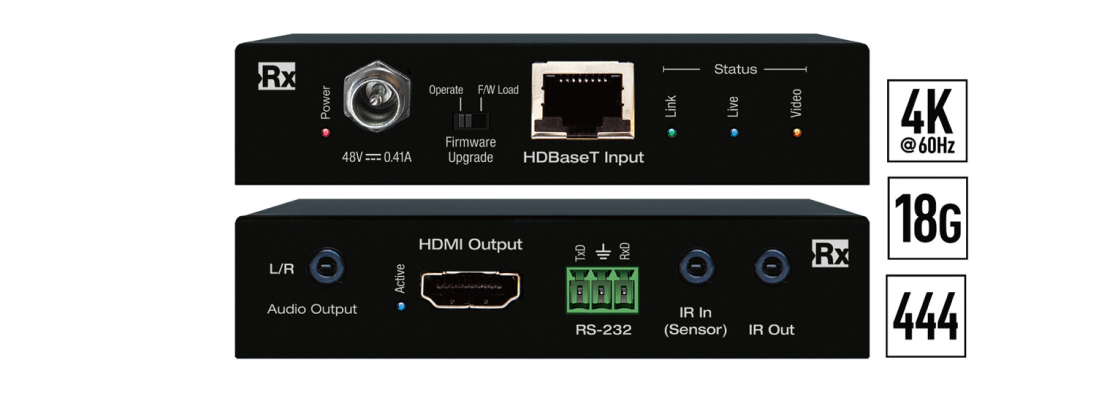

KD-X40MRx

4K/18G HDBT Rx (40m) with L/R Audio De-Embed, IR, RS-232 (Rx Only)

To get more information about the product
Contact us
Videos
Features
Features
  • Tx Options: Sold a-la-carte to integrate natively with KD-X2x1WDTx and KD-X2x1WVTx wall-plate transmitters (sold separately).
  • Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X2x1WDTx / KD-X2x1WVTx. Rx is powered by Tx when integrated with KD-PS42 / KD-UPS42
  • Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R audio connection for ease of integration with audio systems
  • CEC Manager™: Passes through CEC control signals for monitors & projectors when integrated with KD-PS42 / KD-UPS42.
  • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • 4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Low Profile: Super slim chassis design
  • Signal Extension: For resolution and cable quality
  • 4K/UHD (18G): Up to 40m / 131ft
  • 1080p: Up to 70m / 230ft
  • 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
  • HDR10: More life-like images through a greater range of luminance levels
  • HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
  • Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
  • RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
